Normal dynamic adhesion of an infinite elastomer layer on a statistically rough substrate

ZiJian Chen, Peng Zhang, Tao Wang , XiaoPing Wu, Zhong Zhang, Yang Zhao*, Ping Gu*

Journal of the Mechanics and Physics of Solids (2025) doi: https://doi.org/10.1016/j.jmps.2025.106040

ABSTRACT

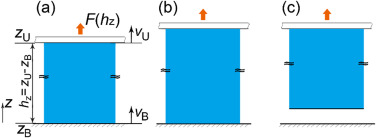

   The dynamic adhesion properties under different pulling speeds on rough substrates have potential value in practical applications. Our primary objective is to ascertain the influence of the pulling speed on the normal stress required for delamination when an infinite elastomer layer delaminates from a statistically random rough rigid substrate. We decouple the interface delamination velocity from the pulling speed based on the deformation of the elastomer during pull-off procedure. Based on the balance of interface stress and elastomer stress, we obtain the varying interface delamination velocity with constant pulling speed. By combining the Greenwood-Williamson statistical model of rough substrate with Muller theory of dynamic adhesion, we obtain a dynamic adhesion model to describe the adhesion force between the elastomer and the rough substrate under various interface delamination velocities, and deduced the pull-off stress σpull-off as a power function of the pulling speed vU, that is σpull-off ∝ vUkexp. The exponential kexp of the above power function is studied as the pulling speed range of 0.01 ∼ 10 mm/s, the elastomer modulus range of 49.4 ∼ 4000 kPa and the RMS roughness range of 10−4 ∼ 10−7 m. Through the experimental verification when the RMS roughness of substrate Zrough and the modulus of elastomer E satisfy 20×(zrough/zk) < (E/Ek)−0.354 (here zk = 1 mm, Ek = 1 kPa), the exponential is constant and independent of roughness or modulus. High roughness or high modulus will result in this exponential increase due to the change of the pressing depth probability density function. This finding is expected to simplify the analysis of the dynamic adhesion on the rough substrate and provide ideas for the rough substrate adaptive design of adhesive materials.
